YBR 125CC Gasoline Balance Engine Air Cool Manual Clutch Electric/Kick Start
Details:

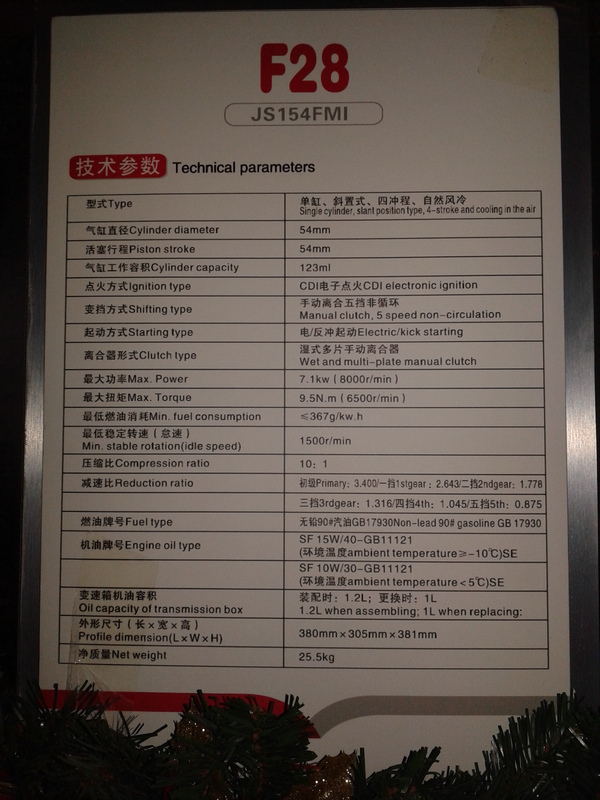

| Technical Parameter |
| Engine Model | 154FMI-5 |
| Engine Name | YBR125 |
| Engine Type | Single Cylinder, 4 Stroke, AIR cool, Camshaft upward Balance shaft |
| Displacement(ml) | 124 |
| Dimension(mm) | 380*305*381 |
| Net Weight(kg) | 25.5 |
| Max.Power(kw/rpm) | 7.1/8000 |
| Max. Torque(N.m/rpm) | 9.5/6500 |
| Compression Ratio | 10:1 |
| Bore and Stroke(mm) | 54*54 |
| Ignition Type | CDI |
| Lubrication Type | Pressure Splash |
| Min. Fuel Consumption(g/kw.h) | ≤367 |
| Starting Type | Electric/Kick Start |
| Carburetor Model | PTK |
| Clutch Type | Multi Plate Oil Bath Type/Manual Clutch |
| Gearshift Type | 5 Gear |
Guarantee: 2 year or 30000 km
Delivery time: 30 Work days
Production description:
1. Cylinder head appearance -- The newly-designed integrated cylinder head provides a simple appearance.
2. New heat engine structure -- new oil passage in cylinder head ensure a more rational mechanism and reduced cylinder head noise.
3. Roller valve arm -- roller valve arm adopted to reduce the friction at the contact between camshaft and the arm. Ball bearing uesd at the neck of the camshaft reduces power loss.
4. Lightweight piston with Piaggio tool marks -- reduces piston abrasion and improves power output. Oil groove added to improve lubrication and prolong piston life.
5. Optimized camshaft contour -- increases engine power and torque, and the starting and overtaking accelerations of the vehicle superior to other similar ones.
6. Crankshaft -- with thickened inner race, the crankshaft bearing has better strength ang longer service life; the shortened connecting rod reduces the reciprocating inertial force and is a thorough solution to engine detonation. Eccentric design of crankshaft to reduce friction loss, improve combustion efficiency and reduce oil consumption.
Options:
Kick starter/ Shift Padel/ Tail Cover/ Electric parts/ Intake Pipe/ Carburetor/ Standrad parts
Customed Brand Design Is Accepted
Product shows:
